AIR FILTER

TANK / SEAT FOR KTM DUKE 2017

FUEL PUMP

Item numbers

FUEL TANK PREASS.

76007013144

76007013344

$872,77

Unit Price

FUEL LEVER SENSOR

76007080000

76007080200

$189,67

Unit Price

GASKET, FUEL LEVEL SENSOR

76007080190

$20,98

Unit Price

AH COLLAR SCREW DIN 912 M5X16
AH SCREW DIN0912-M 5X16

0912050163

$1,44

Unit Price

FUEL TANK NECK

76007008350

$30,48

Unit Price

BUSHING 13X20X18, 5MM

76008052000

$11,21

Unit Price

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2,89

Unit Price

RUBBER SLEEVE 5X7.6X13MM

76008052050

$2,89

Unit Price

GASKET TANK PLUG

76007008052

$7,38

Unit Price

TANK PLUG

76007008000

$142,42

Unit Price

AH SCREW DIN0912-M 5X30

0912050303

$1,44

Unit Price

SHCS DIN 912 M5X8

0912050083

$1,44

Unit Price

COLLAR BUSH. 6, 2X10X21X14MM 08

69007028000

$7,38

Unit Price

RUBBER GROMMET, TANK MOUNTING

69007027000

$4,34

Unit Price

HH COLLAR SCREW M6X25 TX30

0025060256

$4,34

Unit Price

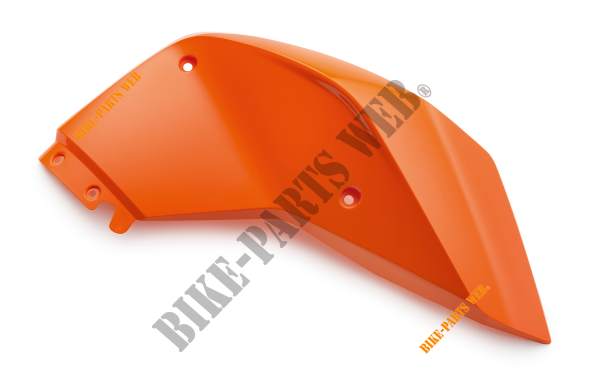

SPOILER RIGHT ORANGE

76008051000EB

$69,29

Unit Price

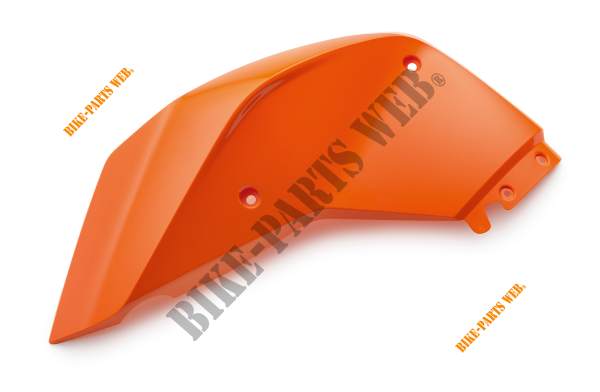

SPOILER LEFT ORANGE

76008050000EB

$75,89

Unit Price

SHCS ISO 14580 M6X12

014580060126

$2,89

Unit Price

SPECIAL WASHER

61108045000

$5,80

Unit Price

QUICK RELEASE-NIPPLE 03

54806008051

$2,89

Unit Price

HH COLLAR SCREW M6X10 TX30

0024060106

$4,34

Unit Price

SOZIUS SEAT

76007047100

76007147000

$208,15

Unit Price

SEAT RUBBER 10 MM

75007046010

$4,34

Unit Price

SEAT COVER SOZIUS

76007047150

$47,51

Unit Price

SEAT

76007040200

76007040300

$300,55

Unit Price

SEAT COVER DRIVER

76007040250

$49,62

Unit Price

AH-COLLAR SCREW M8X25 ISA45

0035080256

$5,80

Unit Price

RUBBER STRIP 85X25X3 MM

54601097000

$1,44

Unit Price

HARNESS FUEL LEVEL SENSOR

76011096000

$32,06

Unit Price

TANK COVER

76008002000

$52,13

Unit Price

HOSE 5, 4X9, 4 NBR, METER

60007126001

$10,02

Unit Price

HOSE CONNECTION STRAIGHT

69015019010

$7,38

Unit Price

GASKET TANK INSERT

21007008151

$19,79

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of KTM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your KTM 690 DUKE 2017 model
