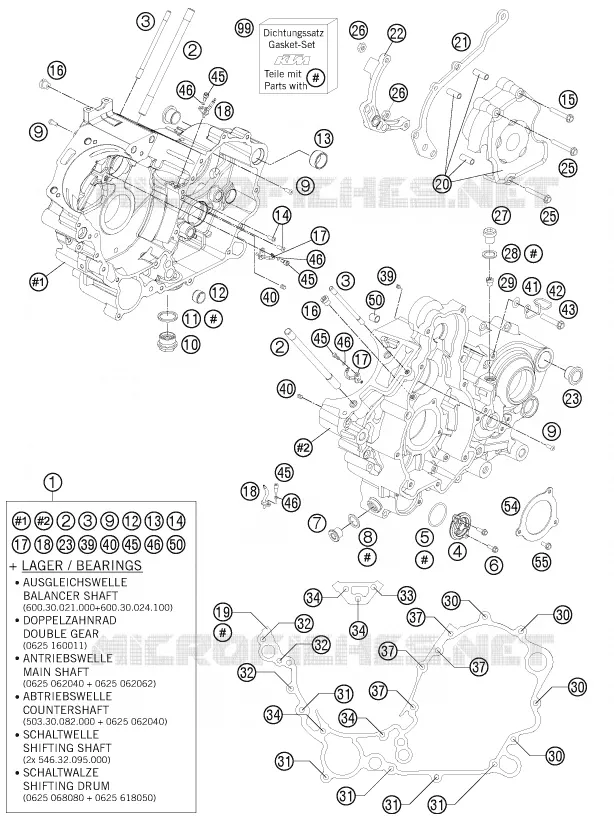

CRANKCASE FOR KTM ADVENTURE 2012

CLUTCH COVER

Item numbers

ENGINE CASE CPL. WITH BEARINGS

6113000004423

Contact

STUD M10X161 06

60030043100

$18,43

Unit Price

STUD M 6X101 10.9 03

60030043010

$8,00

Unit Price

OIL FILTER COVER

75038041200

$12,43

Unit Price

O-RING 39, 34X2, 62

07700390261

$3,89

Unit Price

HH COLLAR SCREW M5X16 TX30

0025050166

$3,89

Unit Price

PLUG SCREW M14X1, 5 ALU AH

60038033050

$17,00

Unit Price

CU-SEAL RING 14X20X1, 5 LC8 02

0603142016

$5,19

Unit Price

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$2,59

Unit Price

DRAIN PLUG W. MAGNET

58038019050

Contact

CU-SEAL RING DIN7603-22X27X2

58038017100

Contact

DOWEL 17 X 14 X 9, 5

58330023000

$8,42

Unit Price

DOWEL 20, 1X24X12 03

60030023000

$6,49

Unit Price

HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9

0019050106

0019050106S

$3,89

Unit Price

HH COLLAR SCREW M6X30 TX30

0025060306

$5,19

Unit Price

JET 60 DELLORTO M6X0, 75

59030054000

$20,01

Unit Price

OIL JET CURVED ''70'' BLUE

60030066000

$18,58

Unit Price

OIL JET CURVED ''70'' GREEN

60030064100

$16,29

Unit Price

ENGINE CASE GASKET 0, 5MM 05

60030039100

$33,45

Unit Price

CHAIN SPROCKET COVER CPL. 03

60030060044

$21,15

Unit Price

CHAIN FAIL. PROTECTION LC8 03

60030047000

$33,31

Unit Price

ADAPTER F. HYDR. CLUTCH 03

60032063000

$11,14

Unit Price

SWING BEARING OUTSIDE LC8 03

60030010000

$20,87

Unit Price

HH COLLAR SCREW M6X35 TX30

0025060356

$5,19

Unit Price

SELF LOCK. NUT DIN985-M6-A2
SELF LOCK. NUT DIN0985-M 6

0985060003

$3,89

Unit Price

OIL DRAIN PLUG M10X1, 5 AH-WS=6

49030029000

$8,85

Unit Price

SEALING RING DIN 7603 10X14X1

0603100141

$3,89

Unit Price

REDUCING JET ''30'' M6X0, 75

60038029200

$27,30

Unit Price

HH COLLAR SCREW M6X40 TX30

0025060406

$5,19

Unit Price

HH COLLAR SCREW M6X60 TX30

0025060606

$5,19

Unit Price

HH COLLAR SCREW M6X65 TX30

0025060656

$3,89

Unit Price

HH COLLAR SCREW M6X70 TX30

0025060706

$5,19

Unit Price

HH COLLAR SCREW M6X75 TX30

0025060756

$5,19

Unit Price

HH COLLAR SCREW M6X90 TX30

0025060906

$5,19

Unit Price

THREAD PIN DIN916 M5X4-45H

0916050042

$13,86

Unit Price

THREAD PIN DIN0551-M 6X 5

0551060050

Contact

WASHER DIN0125-A 6, 4

0125060003

$2,59

Unit Price

CABLE SUPPORT 03

60011094000

$8,00

Unit Price

HH COLLAR SCREW M6X15 TX30

0024060156

$5,19

Unit Price

AH.SCREW DIN0912-M 4X10

0912040103

$3,89

Unit Price

O-RING 3, 5X2, 00 NBR

0770035020

$2,59

Unit Price

DOWEL 9, 8 X7X10

49030090000

49030090100

$3,89

Unit Price

BRACKET FOR BEARING INSERT 05

60030084000

Contact

HH COLLAR SCREW M5X12 TX30

0025050126

$5,19

Unit Price

GASKET SET CPL. 03

60030099000

Contact

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of KTM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
