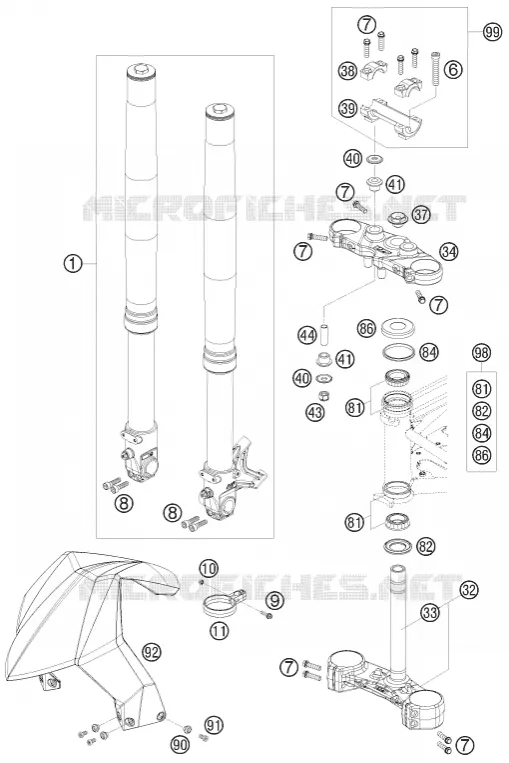

FRONT FORK / TRIPLE CLAMP FOR KTM DUKE 2009

FRONT FORK (PARTS)

Item numbers

FORK KTM 690 DUKE 2009

14187E0901

$3 769,16

Unit Price

AH SCREW DIN6912-M10X60

0012100603

$3,89

Unit Price

HH COLLAR SCREW M8X30

0025080306

$4,71

Unit Price

AH SCREW DIN0912-M 8X30

0912080303

$3,89

Unit Price

HH COLLAR SCREW M5X20 TX30

0025050206

$3,89

Unit Price

SELF LOCKING NUT DIN 985 M5
SELF LOCKING NUT DIN0985-M 5

0985050003

$3,89

Unit Price

CLAMP BRAKE HOSE 07

75001070000

$8,00

Unit Price

BOTTOM TRIPLE CLAMP CPL. 07

7500103203201S

$605,88

Unit Price

FORK TUBE LC8 ADV 03

60001033000

$99,66

Unit Price

TOP TRIPLE CLAMP 54MM 07

7500103403201S

$318,31

Unit Price

STEERING HEAD SCREW M20X1.5 SW=27

54801036000

54801036300

$17,15

Unit Price

HANDLEBAR CLAMP 28MM 07

5900103830001S

$42,46

Unit Price

HANDLEBAR MOUNT 28?MM 07

5900103920001S

5900103930001

$225,21

Unit Price

WASHER 10.5X32X2

56401042000

$6,49

Unit Price

RUBBER BUSHING

56401040000

$8,00

Unit Price

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$3,89

Unit Price

SPACER TUBE 10.2X12X38

61001041000

$6,49

Unit Price

TAPERED ROLLER BEARING CPL. 06

54201081100

Contact

O-RING SUPPORT W. SEALING LIP

54601084200

77701084000

$29,59

Unit Price

STEARING HEAD GASKET TOP

54601184000

$10,86

Unit Price

STEERING HEAD COVER 05

61001086000

$21,29

Unit Price

BUSHING MUD FLAP 07

75001094010

$9,28

Unit Price

AH SCREW DIN6912 M6X12

0012060123

Contact

FENDER FRONT BLACK MET. 08

7560801000040A

Contact

STEARING HEAD REPAIR KIT

00050000930

54201081144

$136,12

Unit Price

HANDLEBAR SUPPORT KIT

00050000922

$193,04

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of KTM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
