CYLINDER

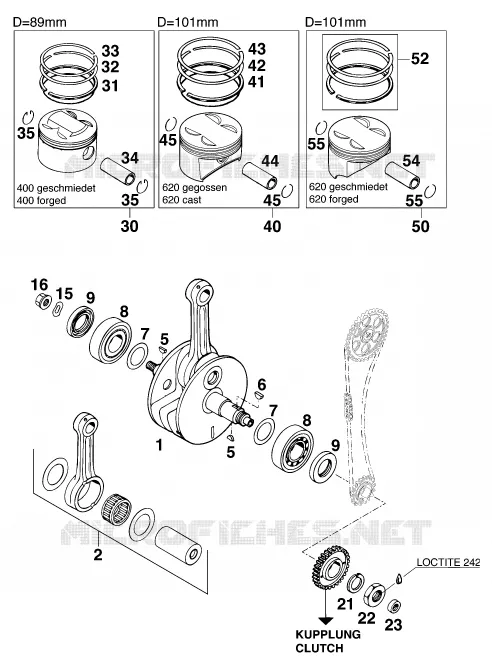

CRANKSHAFT / PISTON FOR KTM LC4 1998

ENGINE VENT

Item numbers

CRANKSHAFT CPL. 400 LC4 '97

57630018000

Contact

CRANKSHAFT CPL. 540/620 LC4'

58330018000

Contact

CONNECTING ROD REPAIR SET LC4

58030015044

Contact

CON.ROD REPAIR KIT

58330015044

Contact

WOODRUFF KEY DIN6888-3X5X13

0888030050

$3,89

Unit Price

WOODRUFF KEY 5X6, 5 HARDED

6946005

$3,89

Unit Price

THRUST WASHER 30, 5X45X0, 10

56030081000

$2,59

Unit Price

THRUST WASHER 30, 7X47X0, 15

56030081100

$3,89

Unit Price

THRUST WASHER 30, 5X45X0, 30

56030081200

$3,89

Unit Price

CYL.ROLLER BEARING NJ 306 C3

58030082000

Contact

SHAFT SEAL RING 30X47X7 BSL

0760304771

Contact

SPRING WASHER DIN0137-B12

0137120000

$2,59

Unit Price

COLLAR NUT M12X1 LEFT WS=17

51030028100

Contact

LOCKING RING VSK 20

58030019000

$2,72

Unit Price

HEXAGON NUT DIN0936-M20X1, 5

0936200155

Contact

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$24,15

Unit Price

PISTON I 89 MM CPL. FORGED

57530007000I

Contact

PISTON II 89MM CPL. FORGED

57530007000II

Contact

OIL SCRAPER RING 89MM

57530031000

Contact

TAPERED COMPR.PISTON RING 89MM

57530132000

Contact

RECTANGULAR RING 89MM

57530032000

$70,34

Unit Price

PISTON PIN 22 X 13 X 54, 2

58030033000

Contact

CIRCLIP A 22 X 1, 5

58030074000

Contact

58330007300I

Contact

58330007300II

Contact

OIL SCRAPER RING 101X2, 5

58330031300

$52,47

Unit Price

TAP.COMPR.PISTON RING 101X1, 25

58330932100

$40,46

Unit Price

RECTANGULAR RING 101X1, 25

58330832000

Contact

PISTON PIN 22 X 13 X 60

58330833000

$70,77

Unit Price

CIRCLIP C 22 X 1, 5

58030074100

Contact

PISTON 101 MM CPL. FORGED

58330007200

Contact

PISTONRING SET KPL.101MM ARIAS

58330031244

Contact

PISTON PIN 22 X 13, 5 X 63, 5

58030833000

Contact

CIRCLIP C 22 X 1, 2

58030874000

Contact

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your KTM 620 SUP-COMP of 1998. Let us know if you have any questions.
