FRONT WHEEL

REAR WHEEL FOR KTM ENDURO 1997

WIRING HARNESS

Item numbers

REAR WHEEL CPL. DAMPED 2, 5X18''

58310001044

Contact

58310010044

Contact

BEARING SPACER TUBE L=98, 3MM

54610411100

Contact

GROOVED BALL BEAR. 6205-2RSHC3HMTF7
GR.BALL BEAR. 6205-2RSHC3HMTF7

0625062052

$47,18

Unit Price

SHAFT SEAL RING 32X52X7 B

0760325272

$25,30

Unit Price

BUSHING FOR HUB 08

54610016000

78010016000

$50,32

Unit Price

BUSHING FOR REAR DAMPED HUB

54610416300

$30,73

Unit Price

SPOKE M5X223-10G 18''

54610471000

$8,00

Unit Price

SPOKE M5X198-10G 18''

56510171600

Contact

REAR RIM 2, 50X18'' DID

58010470100

Contact

STEEL NIPPLE M5

56509072000

Contact

REAR BRAKE DISK 220MM COUNTERS

58010060600

Contact

HH COLLAR SCREW M6X20 TX30

0015060203

0025060206

$5,19

Unit Price

SELF LOCKING NUT M6

56509064000

Contact

REAR SPROCKET 38-T

58310051038

$99,37

Unit Price

REAR SPROCKET 42-T

58310051042

$99,37

Unit Price

REAR SPROCKET 40-T

58310151040

$96,51

Unit Price

REAR SPROCKET 48-T

58310151048

7771015104801

$114,39

Unit Price

REAR SPROCKET 50-T

58310151050

7771015105001

$114,39

Unit Price

REAR SPROCKET 52-T

58310151052

7771015105201

$114,39

Unit Price

SPROCKET SCREW-AH M 8X26

54510052000

Contact

54310086000

Contact

50010065100

Contact

X-R.CHAIN 5/8X1/4''/M W.LINK

50010065101

Contact

RIVETING LINK FOR 78010267118

50010066100

78010266100

$20,29

Unit Price

SPROCKET SUPPORT CPL. (54610416500, 5831005024491)
SPROCKET SUPPORT CPL.

58310050044

Contact

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$26,59

Unit Price

RUBBER DAMPING BLOCK 91
RUBBER DAMPING BLOCK '91

54610459000

$12,29

Unit Price

GR. BALL BEARING 3205B-2RSRTNG

0625032057

Contact

SEAL WASHER 3205 AV

54610018000

Contact

52010073000

Contact

HOSE 4.00/4.50/120/130-18''

54010075000

Contact

TYRE 130/80-18'' T63 66S

54610174500

Contact

RIM LOCK VM4 (2.50'')

56410100100

$47,32

Unit Price

NUT FOR WHEEL HOLDER

50310090050

77110090050

$8,00

Unit Price

PLUG FOR RIM

55003135000

$3,89

Unit Price

PLUG SFL16
COVERING CAP SFL16

50210086000

$5,19

Unit Price

WHEEL SPINDLE REAR CPLL=264MM

50210085044

Contact

CHAIN TENSIONER '95

56510084100

Contact

HH SCREW M8X40 WS=10

50203030090

$6,49

Unit Price

HEXAGON NUT DIN934 M8
HEXAGON NUT DIN0934-M 8

0934080003

$3,89

Unit Price

HEXAGON NUT M20X1, 5

54310099000

Contact

COVER BRAKE DISC REAR

58113081000

$41,74

Unit Price

HH COLLAR SCREW M6X12 TX30

0912060123

0025060126

$5,19

Unit Price

TOOTH LOCK WASH. DIN6797-A 6, 4

0797060003

$2,59

Unit Price

WASHER DIN9021-A 6, 4

0021060003

$3,89

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

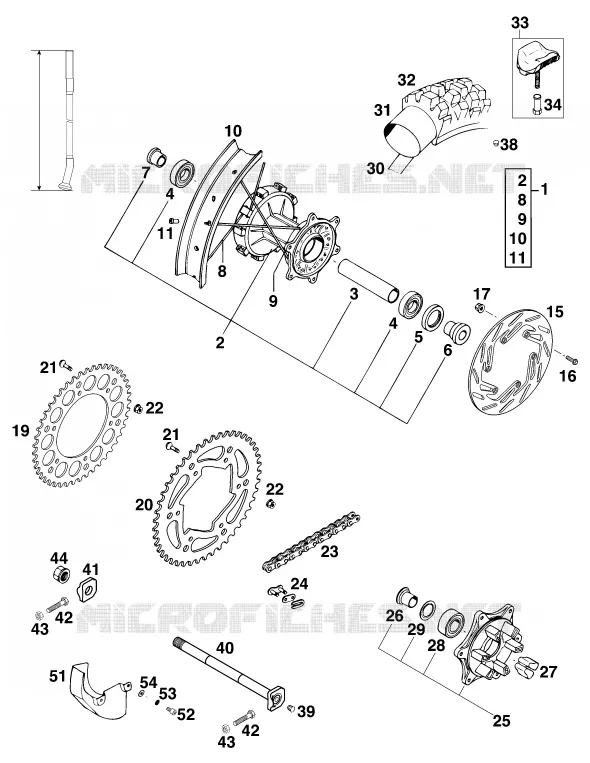

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your KTM 620 EGS 37KW 20LT ROT of 1997. Let us know if you have any questions.
