FRONT FORK / TRIPLE CLAMP

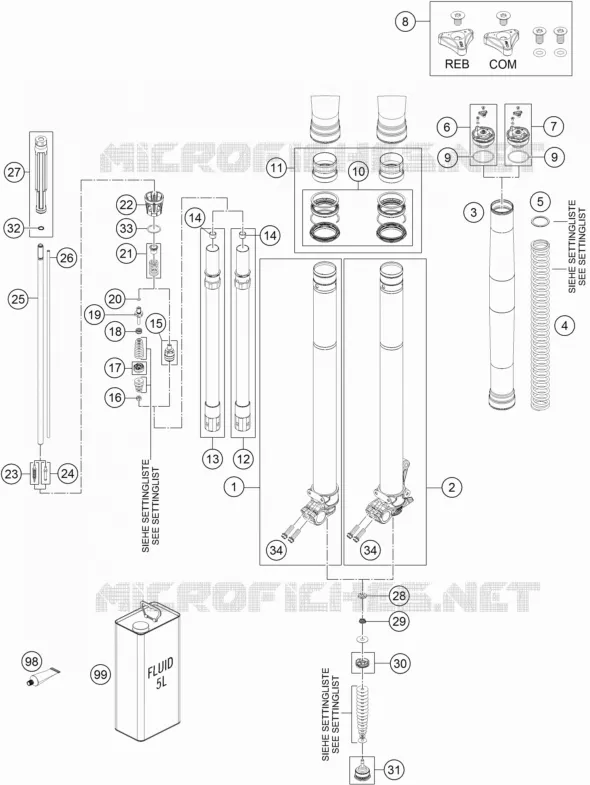

FRONT FORK (PARTS) FOR KTM EXC 2018

HANDLEBAR / CONTROLS

Item numbers

AXLE CLAMP OC R/S CPL. & TUBE

48601633S1

$686,10

Unit Price

AXLE CLAMP OC L/S CPL. & TUBE

48601632S1

$797,93

Unit Price

FORK OUTER TUBE 49.13X577 DT54 DB60

48601671

48602096

$393,67

Unit Price

MAIN SPRING (43.8) 3.8-470 FORK CMPL.

91410099S

S809900030S0000

$214,49

Unit Price

MAIN SPRING (43.8) 4.0-470 FORK CMPL.

91410100S

S809900031S0000

$214,49

Unit Price

MAIN SPRING (43.8) 4.2-470 FORK CMPL.

91410101S

S809900032S0000

$214,49

Unit Price

MAIN SPRING (43.8) 4.4-470 FORK CMPL.

91410102S

S809900033S0000

$214,49

Unit Price

MAIN SPRING (43.8) 4.6-470 FORK CMPL.

91410103S

S809900034S0000

$214,49

Unit Price

MAIN SPRING (43.8) 4.8-470 FORK CMPL.

91410104S

S809900035S0000

$214,49

Unit Price

WASHER 35X43X2, 5 PLASTIC

48600456

$3,13

Unit Price

PRELOAD BUSH 35X43X3, 5

48600457

$3,13

Unit Price

WASHER 35X43X1, 5 PLASTIC

48600458

$3,13

Unit Price

SCREW CAP M51X1, 5 PA RIGHT CPL

48601680S2

$321,31

Unit Price

SCREW CAP M51X1, 5 PA LEFT CPL.

48601680S3

$321,31

Unit Price

SCREW CAP SMALL PART KIT

R14033

R14033T

$10,43

Unit Price

O-RING 46X2 NBR70 SILICONIZED YELLOW
O-RING 46X2 NBR70 SILICONIZED

48600048

$4,71

Unit Price

SEAL KIT 48MM SKF BLACK

R14046

RP10048T

$102,09

Unit Price

FORK REPAIR KIT 48MM OFFROAD (R14047T, RP10048T)
FORK REPAIR KIT 48MM OFFROAD

R14063

$144,98

Unit Price

PIPE&THREADED SLEEVE WITH HOLE

48600763S1

$253,38

Unit Price

PIPE & THREADED SLEEVE

48600763S2

$240,94

Unit Price

GUIDE BUSHING 12X14X10

48600430

$9,85

Unit Price

TAP COMPRESSION CPL.

48601843S

$96,94

Unit Price

NUT M6X0, 5 H6, 5 WAF10 REBOUND

40540486

$6,28

Unit Price

PISTON 6X23X13 CPL.

48600575S1

48601817S

$33,59

Unit Price

SPRING (11, 4) 0, 4-8 VALVE

48600382

$3,13

Unit Price

TAP 6X46 REBOUND

48600576

$19,49

Unit Price

O-RING 6X1, 2 NBR70

48600299

$1,56

Unit Price

SPRING (13, 9) 37-32 REBOUND CPL.
SPRING (13, 9) 37-32 REBOUND CP

48600578S

$6,28

Unit Price

SPRING RETAINER 27, 08X43X45

48601298

$9,00

Unit Price

NEEDLE 4, 5X43, 6 CPL.

48600277S

$13,72

Unit Price

NEEDLE 4, 5X38, 2 CPL.

48601558S

$17,72

Unit Price

PISTON ROD 12X554

48600568

$151,71

Unit Price

ADJUSTMENT TUBE 6X521, 7

48601786

$46,18

Unit Price

STOP 12, 4X31, 9X200, 3 KPL.

48601556S

S228700003S0100

$19,44

Unit Price

NUT VALVE M6X0, 5 H6, 5 WAF17

48600163

$4,71

Unit Price

SPRING (8, 5) L6, 5 VALVE

48600202

$3,13

Unit Price

PISTON 6X27, 8X9 COMPRESSION CPL.
PISTON 6X27, 8X9 COMPRESSION CP

48600047S

$23,01

Unit Price

SCREW CAP M29, 3X1 OC SPLIT CPL

48601553S

$39,31

Unit Price

O-RING 11X2, 5 NBR70 PTFE YELLOW
O-RING 11X2, 5 NBR70 PTFE YELLO

04500003

$1,56

Unit Price

SHIM 27, 5X33X0, 3

48601702

$16,43

Unit Price

HH COLLAR SCREW M8X25

0025080256

$3,13

Unit Price

FUCHS GREASE IPR (250G)

T14034

$52,90

Unit Price

FORK FLUID VISCOSITY 4.0 5L
FORK OIL SAE4 5L

48601166S1

$228,79

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of KTM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
