Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

HANDLEBAR / CONTROLS

FRAME FOR KTM EXC 2011

SIDE / MAIN STAND

Item numbers

FRAME 250/300 ''CC08''

5480340120004

Contact

SUB FRAME SX ''Q7'' 07

77303002000

$580,85

Unit Price

SUB FRAME APPLICAT. LEFT 08 (0025060166, 0025060206, 78103002010)
SUB FRAME APPLICAT. LEFT 08

78003002010

$44,69

Unit Price

SUB FRAME APPLICATION R/S 08 (0025060166, 0025060206, 78103002020)
SUB FRAME APPLICATION R/S 08

78003002020

Contact

REINFORCING B. 250 SX 07

54803413000

$22,01

Unit Price

STEERING LOCK

78003035000

78003035100

$32,02

Unit Price

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$3,89

Unit Price

SPECIAL SCREW M8X26 WS=10

59001037000

$5,19

Unit Price

HEXAGON NUT DIN934 M8
HEXAGON NUT DIN0934-M 8

0934080003

$3,89

Unit Price

ENGINE BRAC.SCR. M10X105 WS13

54603013000

$18,58

Unit Price

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$3,89

Unit Price

HH COLLAR SCREW M8X44 WS13

56530079000

56530079000S

$5,19

Unit Price

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$8,00

Unit Price

CABLE TIE 300/4, 8MM BLACK

44011076305

$3,89

Unit Price

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

$1,29

Unit Price

BUSH F. FRAME PROTECTION 03

54803092060

$6,49

Unit Price

PLASTIC CAP SFL10

54403135000

$3,89

Unit Price

SELF LOCKING NUT M8 10.9

54310086200

$5,19

Unit Price

SELF LOCKING NUT M10 CU WS=14

54310086100

$3,89

Unit Price

HH COLLAR SCREW M8X30

0025080306

$4,71

Unit Price

HH COLLAR SCREW M6X30 TX30

0025060306

$5,19

Unit Price

FOOTREST L/S 08

78003040050

$66,77

Unit Price

FOOTREST R/S 08

78003041050

$66,77

Unit Price

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$19,01

Unit Price

FOOTREST SPRING L/S & R/S

54603041000

$8,00

Unit Price

WASHER DIN 125 A 10.5

0125100003

$3,89

Unit Price

PIN DIN 0094-3.2X25 NIRO

0094032253

0094032250

$2,59

Unit Price

FOOTREST L/S + R/S CPL. 09

78003040033

$177,45

Unit Price

ANGLE PIECE '97

50303089000

$8,00

Unit Price

PVC-HOSE 7X10 PER METER

55007016001

$9,28

Unit Price

SPROCKET COVER 250 SX 07

54803096000

$17,86

Unit Price

CHAIN SLIDING PIECE, BOTTOM
CHAIN SLIDING PIECE BELOW 07

77303053000

Contact

BLIND RIVET NUT EM6-60LF/HX

77303139000

$6,49

Unit Price

PLASTIC FRAME PROTECTION SET

77303094100

$44,19

Unit Price

CHAIN SLIDING KIT BELOW CPL07

77303053010

Contact

SPROCKET COVER KIT

54803096010

$30,16

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

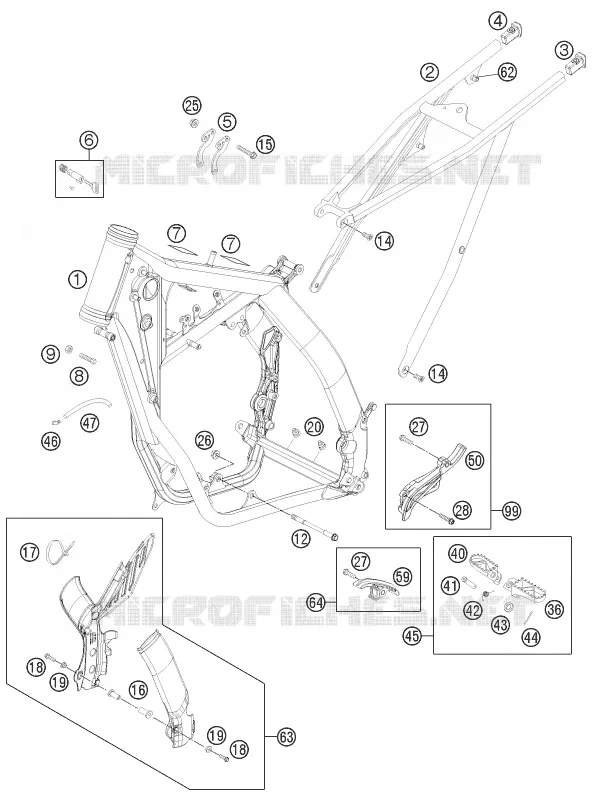

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your KTM 300 EXC FACTORY EDITION of 2011. Let us know if you have any questions.
