REED VALVE CASE

CARBURETOR FOR KTM XC-W 2013

CLUTCH

Item numbers

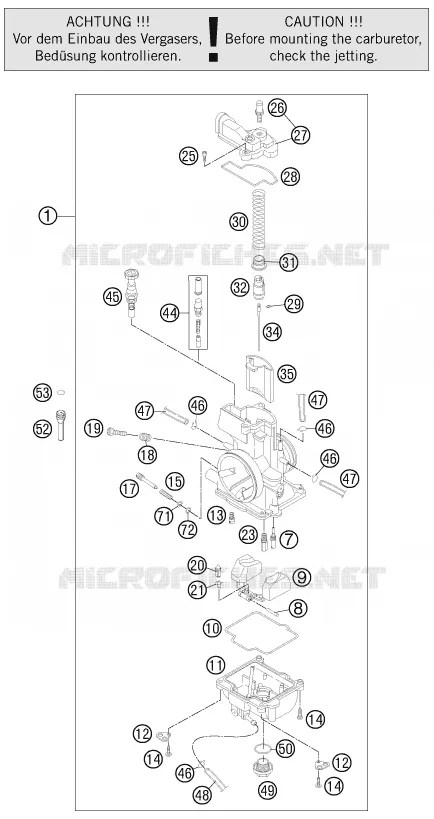

CARBURETOR KTM MOTO 200 2013 XC-W 200 XC-W
1
1
1
7
7
7
7
7
7
7
7
8
9
10
11
12
12
13
13
14
14
14
15
17
18
19
20
21
23
23
23
23
23
23
23
23
23
23
23
23
25
26
27
28
29
30
31
32
34
34
34
34
34
34
34
34
35
44
45
46
46
46
46
47
47
47
48
49
50
52
52
53
71
72
1
CARBURET.KEIH.PWK 36S AG BC5

52331001844  

54831201544

Unit Price

7
IDLE JET 35 KEIHIN

54531607035  

Unit Price

7
IDLE JET 38 KEIHIN

54531607038  

Unit Price

7
IDLE JET 40 KEIHIN

54531607040  

Unit Price

7
IDLE JET 42 KEIHIN

54531607042  

Unit Price

7
IDLE JET 45 KEIHIN

54531607045  

Unit Price

7
IDLE JET 48 KEIHIN

54531607048  

Unit Price

7
IDLE JET 50 KEIHIN

54531607050  

Unit Price

7
IDLE JET SIZE 35X35 KEIHIN

54831007135  

Unit Price

8
ARM PIN FLOAT

57331008000  

Unit Price

9
FLOAT CPL.

57331009000  

Unit Price

10
GASKET FLOAT CHAMBER

54831010000  

Contact
11
FLOAT CHAMBER PWK38-S AG

54831011000  

54831011100

Unit Price

12
RETAINING PLATE FOR BLEEDER

54531612100  

Unit Price

13
STARTER JET 50 KEIHIN

54831051050  

Unit Price

13
STARTER JET 85 KEIHIN

54831051085  

Unit Price

14
HH COLLAR SCREW M 4X13 WS=6

0016040163  

0016040133

Unit Price

15
SPRING FOR ADJUSTMENT SCREW

54531615000  

Unit Price

17
STOP SCREW CPL.

54831017000  

Unit Price

18
SPRING

54631118000  

Unit Price

19
ADJUSTMENT SCREW M 5

54631219100  

Unit Price

20
FLOAT NEEDLE

54631220000  

Unit Price

21
CLAMP

54531621000  

Unit Price

23
MAIN JET GR 100

54531623100  

Unit Price

23
MAIN JET 150 KEIHIN

54531623150  

Unit Price

23
MAIN JET 152 KEIHIN

54531623152  

Unit Price

23
MAIN JET 155 KEIHIN

54531623155  

Unit Price

23
MAIN JET 158 KEIHIN

54531623158  

Unit Price

23
MAIN JET 160 KEIHIN

54531623160  

Unit Price

23
MAIN JET 162 KEIHIN

54531623162  

Unit Price

23
MAIN JET 165 KEIHIN

54531623165  

Unit Price

23
MAIN JET 168 KEIHIN

54531623168  

Unit Price

23
MAIN JET 170 KEIHIN

54531623170  

Unit Price

23
MAIN JET 172 KEIHIN

54531623172  

Unit Price

23
MAIN JET 175 KEIHIN

54531623175  

Unit Price

25
SPECIAL-AH-SCREW M 4X12

54831025000  

Unit Price

26
THROTTLE CALBE HOLDER M6X0, 75

54831029000  

Unit Price

27
CARBURETOR COVER PWK36-S AG

54831127000  

Unit Price

28
GASKET FOR CARBURETOR COVER

54831028000  

Unit Price

29
CLIP FOR JET NEEDLE

54531629000  

Unit Price

30
SLIDING SPRING

54831030000  

Unit Price

31
SPRING CAP

54631231000  

Unit Price

32
NIPPLE

54631232000  

Unit Price

34
JET NEEDLE NPRH KEIHIN

54531636030  

Unit Price

34
JET NEEDLE KEIHIN N1EE 06

54831135000  

Unit Price

34
JET NEEDLE KEIHIN N1EF 06

54831135100  

Unit Price

34
JET NEEDLE KEIHIN N1EG 06

54831135200  

Unit Price

34
JET NEEDLE KEIHIN N1EH 06

54831135300  

Unit Price

34
JET NEEDLE KEIHIN N1EI 07

54831135500  

Unit Price

34
JET NEEDLE KEIHIN N1EJ 07

54831135600  

Unit Price

34
JET NEEDLE KEIHIN N1EK 07

54831135700  

Unit Price

35
THROTTLE VALVE 7 FOR 38 PJ '00

54631035000  

Unit Price

44
CONNECT. COLD START CABLE CPL.

58502096044  

Unit Price

45
STARTER PISTON CPL.

54631245000  

Unit Price

46
CLAMP 6 MM

54531696000  

Unit Price

47
PVC-HOSE 4X6MM

31007007101  

Unit Price

48
PVC-HOSE 3X5MM

52031137001  

Unit Price

49
PLUG M 18X1

54531699000  

Unit Price

50
O-RING 18, 00X2, 30 NBR 70

0770180230  

Unit Price

52
SLIDE STOP L=36 08

52331029000  

Unit Price

52
SLIDE STOP L=33 11

52331029100  

Unit Price

53
O-RING 6, 07X1, 78 FPM75

0770060018  

Unit Price

71
WASHER ADJUSTING SCREW

54831071000  

Unit Price

72
O-RING ADJUSTING SCREW

54831072000  

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your KTM 200 XC-W of 2013. Let us know if you have any questions.
